The industry-leading, self-cleaning ControlMaster® ToughEye™ range of cameras are suitable for any mining and industrial application where a clear view is critical to the success of the operation.

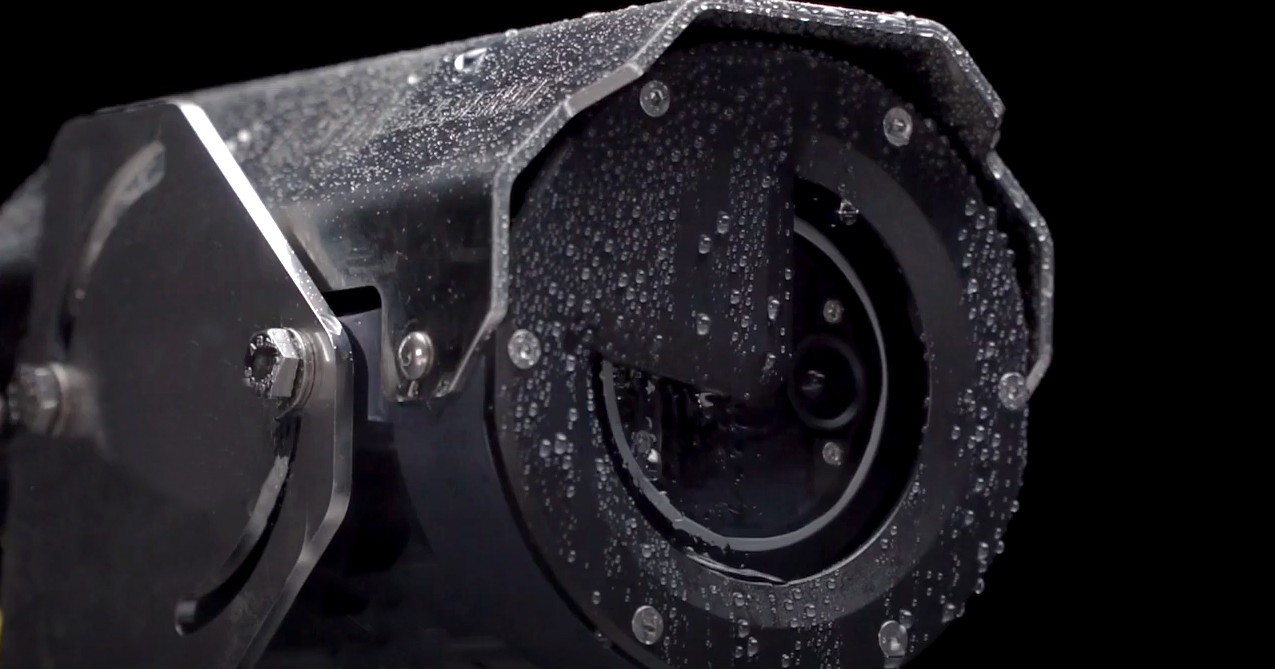

The ToughEye™ 1700 is a field-proven, rugged, single-piece design that delivers optimal, full HD image quality via analogue and IP video outputs.
With an uninterrupted view during self-cleaning, the cameras provide a zero-maintenance* operation.
RCT can customise installations for almost any application.
| Interruption-free view | View is uninterrupted during cleaning |
| Resolution | Full HD (1900 x 1080) |
| Min illumination | Colour: 0.001 Lux @ F1.2 B/W 0.0001 Lux @ F1.2 |
| Horizontal FoV | 80°, 100° |
| Video (IP) | H.265/H.264/MJPEG |
| Video (Analogue) | 720x486 (NTSC), 720x576 (PAL) |
| Dimensions | 102mm x 178mm (4" x 7") |
| Weight | 2.5kg (5.5lb) |
| Clean cycle | Configurable timer-based, electrical trigger (up to 24V) |
| Max wattage | 25W |
| Input voltage | PoE (power over Ethernet IEEE 802.3at), 24VDC |
| Temperature range | -40°C to 60°C (-40°F to 140°F) |
