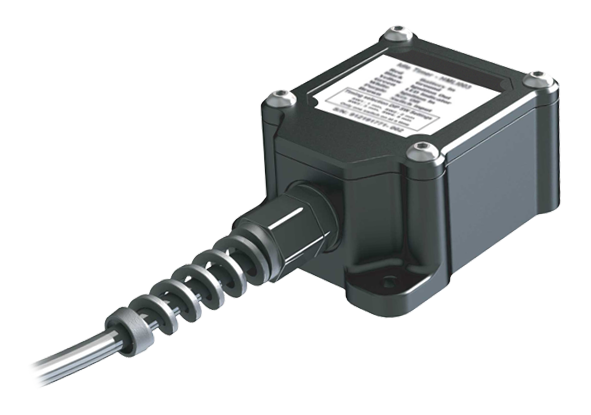

The AusProTec Hummingbird USB Configurable Tilt Switch is an accurate switch with voltage outputs, typically used in automation systems where voltage output is required.
Applications for tilt switches vary widely, and so do the parameters required for optimum performance. Using a built-in USB interface and free software, users can set various parameters associated with the tilt switches and can view their performance in real-time.
Dual axis sensing is supported, and two configurable alarms are available.
Configurable tilt switches measure pitch and roll angles with high accuracy by measuring the earth's gravitational field. Two internal voltage-free relays can be programmed to close or open at various combinations of the measured pitch and roll. For maximum flexibility, normally open, normally closed and common outputs are available.
An integrated USB interface means that the sensor can be configured in-application using a laptop. The USB interface allows the following configuration:
Please note, that the integrated relay outputs are not internally fused. Driving currents larger than those specified will result in damage to the tilt switch.
Input Voltage | 9 – 36 VDC |
Warranty | 1 Year |
Weight | 253g (0.55lbs) |
Height | 35mm (1.37") |
Length | 82mm (3.22") |
Width | 57mm (2.24") |
