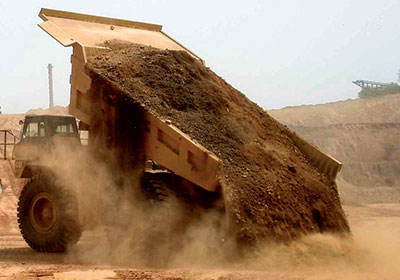

Damage to haul truck trays operating in hazardous areas is all too common and can result in extensive delays in production as well as increasing maintenance costs.

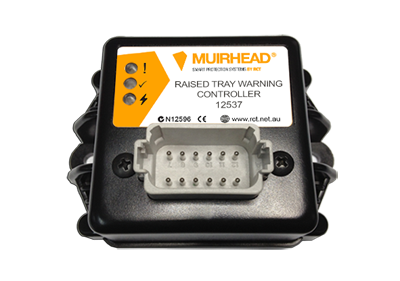

The Muirhead® Raised Tray Warning systems can assist in minimising these risks by alerting the operator and/or personnel within the area that the tray is still in the raised position. These systems are available as a warning only, or may limit the truck when the tray is raised to avoid high speed incidents or accidents.
A truck moving with a raised tray can cause an enormous amount of damage to both infrastructure and machines; resulting delayed production, large repair bills and an overall loss of profit.

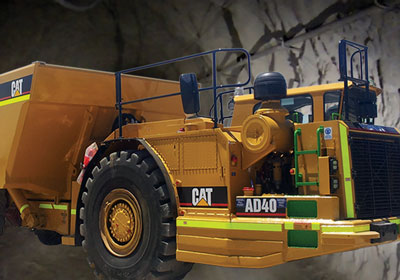

These warning systems are suitable for both underground and surface haul trucks.
| System Voltage | 12 to 24 VDC (reverse polarity protected) |
| Maximum Current Output | 10Amp Continuous |
| Environmental Rating | IP 65 |
| Inputs | Digital / Analouge |
| Outputs | Digital |
| Operating Temperature | -10 to +65 ˚C |
| Dimensions | L- 199mm, W- 80mm, H- 65mm |
