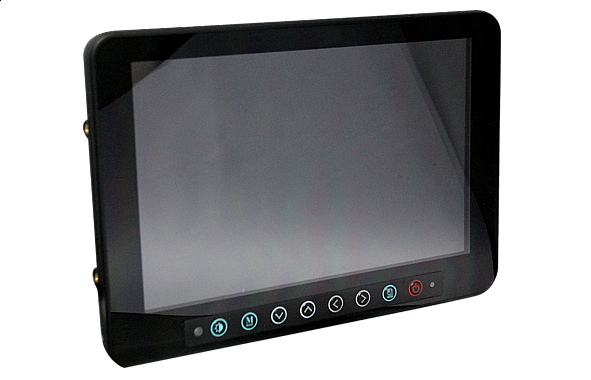

The AusProTec™ Maxi Vision® Waterproof 10” Monitor is robust in design and therefore it’s ideally suited for heavy duty applications. Encased in a sturdy housing and rated to IP67, this monitor is designed to withstand the harshest of environments.
This multi-voltage unit comes complete with heavy duty mounting, auto dim function and up to four camera inputs via an easy to install split connector.
This monitor allows the user to select from multiple views, including: individual cameras, full screen or two, three or four cameras simultaneously on split screen layouts. The MaxiVision® Waterproof 10” Monitor provides a wider view resulting in increased machine productivity and safety!
| Screen Size | 10" | |
| Screen Resolution | 1280 x 3(RGB) x 800 | |
| Screen Brightness | 400cd/m2 | |
| Contrast Ratio | 800:1 | |
| View Angle (L/R/T/B) | 85° / 85° / 85° / 85° | |
| Voltage | 12 / 24VDC | |
| Current Draw | 720mA @ 12VDC | |
| Input | Up to 4 input (NTSC / PAL) | |
| Signal | Video: Composite (CVBS), Audio: Mono (0.5W Maximum) | |
| Weight | 877g (monitor only) | |
| Speaker | 0.5 Watt max. | |
| Language selection | English - French - German - Italian - Spanish - Svenska - Japanese | |
| User Controls | Dimmer, mode, Down, Up, Left, Right, Menu, Power | |
| Temperature | Operating -20°C ~ 60°C | Storage -30°C ~ 80°C |
| Dimensions | 263 x 183 x 29mm | |
