Alliance Resources - River View Coal, Uniontown, Kentucky

Case Study

Overview

American–owned Alliance Resource Partners’ River View Coal Mine in Uniontown Kentucky is the largest mine of its type in the nation.

С 2009 года на ней используется подземный комбайновый добычный комплекс из 18 комбайнов непрерывного действия в камерно-столбовой системе.

На месте проведения работ имеется обогатительная установка с пропускной способностью 2721 тонна необогащенного угля в час, в ходе эксплуатации которой образуются отходы угольного материала: крупные угольные отходы и тонкий угольный шлам. Крупные угольные отходы используются для возведения земляных плотин, разделяющих шламохранилища, куда в разжиженном виде закачивается тонкий угольный шлам. Обычно крупные угольные отходы перевозят на площадку, выгружают в отвал и затем распределяют бульдозерами.

While River View Coal mine’s engineer Mark Henshaw said the process wasn’t an issue at the site, the Mine Safety and Health Administration (MSHA) ordered the mine pushing CCR into tailing pond to find a solution to remove the operator from the dozer. Although there were a few options available, River View Coal management chose to utilise remote control technology on its dozers.

В эксплуатации у заказчика находились два бульдозера: Caterpillar D6T и Caterpillar D8R. Многие компании дистанционных технологий пытались убедить руководство шахты в том, что адаптация системы дистанционного управления для старшей версии бульдозера, D8R, невозможна, однако в компании RCT с этим были не согласны

Решение

RCT is well-known in the industry for being able to adapt its technology to ANY MACHINE and was therefore keen to rise to the challenge of retrofitting its ControlMaster® Remote Dozer system (ATX2200) to the dozers. A rather challenging job that was successfully completed by RCT’s Custom team – a dedicated projects team with the resources and expertise to find the answers to problems and adapt current systems.

Применение дистанционной системы на бульдозере D6T предполагало стандартную установку, тогда как для обеспечения всех дистанционных функций бульдозера D8R потребовалась подгонка большого количества технических средств.

RCT Custom Projects Manager John Androvich described the D8R installation as an extremely challenging job; however this didn’t discourage him and the team from tackling it head on.

"It was a massive task as the D8R was about 15 years-old so it was all mechanically controlled, whereas most new models we deal with today are now electrically controlled.”

  • Джон Андрович, руководитель проектов RCT Custom

The process required a collaborative approach; with the Custom team engaging with RCT’s development team, a hydraulics specialist and a machinist to hand-make some of the componentry.

Like every installation, it was integral that RCT didn’t alter any of the mechanics or functionality of the machine.

"It was important we maintained the mechanical feel for the operator,” he said.

"This involved converting the machine to electric, before converting it to hydraulic and then back to mechanical in some instances.”

Это был не только первый подобный проект для RCT — это был в принципе первый проект по установке системы дистанционного управления на бульдозер D8R.

"Because it was our first time we have remoted a D8R, there was no past history available to guide us, which is challenging in itself.”

On top of this, the team struggled to find a similar machine close by to test the system on.

"Eventually we were able to locate a similar dozer about 200kms away. However we only had access to it for a total period of four hours, so it was during this small timeframe that we had to do our design.”

"Testing the system also posed a difficulty, so we did as much bench testing as humanly possible.”

Рассказывая о проекте, г-н Андрович отмечает заслугу в достигнутом успехе своей опытной команды, которая доказала невероятно высокий уровень технических способностей, необходимых для понимания машины.

"We are lucky to have such an experienced team here at RCT, so we were able to draw on this extensive experience to create something that other remote companies said was virtually impossible,” he said.

Result

The RCT Custom team adapted the standard ControlMaster® dozer remote system to directly meet the client’s requirements.

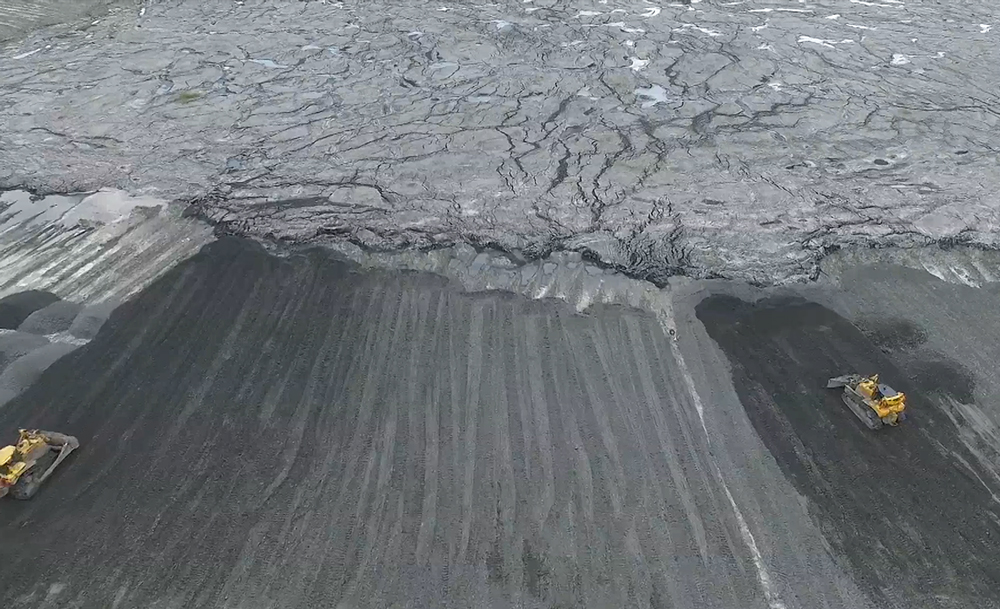

Система дистанционного управления в пределах видимости позволяет операторам дистанционно управлять обоими бульдозерами, а значит, обеспечивает перемещение крупных угольных отходов в отстойник с безопасного расстояния.

RCT’s solution eliminated potential risks as operators can now carry out their job without having to physically sit in the dozer to operate it – avoiding unstable areas and adhering to MSHA’s new regulation.

RCT получила положительные отзывы о работе, проведенной на шахте River View Coal.

"We have been told that the 15-year-old machine is now the preferred machine of use – we got a fair buzz out of hearing that! It’s a definite credit to the team,” Mr Androvich.

Another one of RCT’s strengths is that it documents each project in detail.

"We are now able to reproduce the system for similar machines in the future if required,” he said.

Comments

"My overall impression of RCT is that they are a very professional company with a reliable product – I’m very pleased. The D8R is an older machine and was a much more intense installation – they did a really good job in setting it up and within a couple of weeks it was up and going. We are very happy, RCT are very professional and very reliable and cost efficient.”

  • Марк Хеншо, инженер шахты River View Coal
