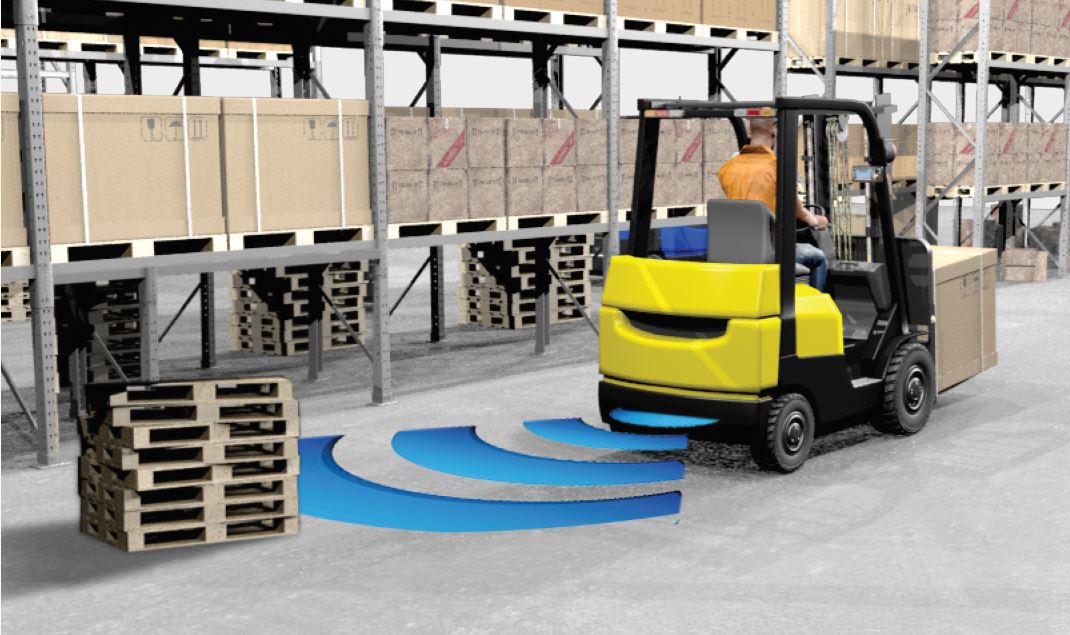

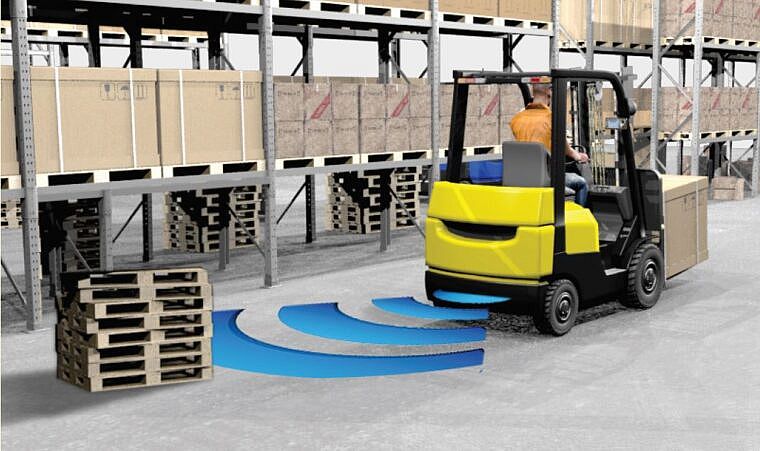

The Sentry Rear Detection kit is specially designed for lift trucks and has the ability to detect objects from the face of the radar up to a pre-set range of 4.5 meters. The system accurately identifies the location and velocity of up to 16 people or objects simultaneously and is built to withstand the harshest of conditions.
With built-in alerts, that notify the operator of radar blockage or communication issues, operators and fleet managers can be sure that they are working with one of the most reliable object detection systems available.

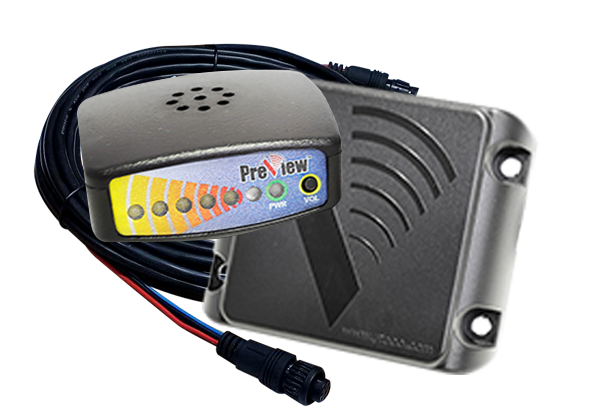

The Industrial Sentry Rear Detection Kit is a plug-and-play, robust radar solution with a pre-configured sensor range. This kit comes with a pre-set 4.5m x 2m (14.7’ x 6.5’) sensor, in-cab LED display, 7.5m (24.6’) harness and 90-degree mounting bracket.
Note: This kit does not have the ability to add additional sensors.
| Frecuencia | 24Ghz |
| Consumo | Menor a 0.25A |
| Temperatura de Operación | -40 F +185 F (-40 C to +85 C) |
| Dimensiones del Sensor | 12.4cm x 10.3cm x 3.25cm (4.88” x 4” x 1.28”) |
| Dimensiones de la Pantalla | 2.54cm x 5.84cm x 5.08cm (1” x 2.3” x 2”) |
| Calificación IP | IP68 - IP69K |
| Rango Preconfigurado | 4.5m x 2m (14.7’ x 6.5’) |
| Harness | Conxall connection industrial harness |
| Expandability | Non-expandable – 1 Sensor kit only |
