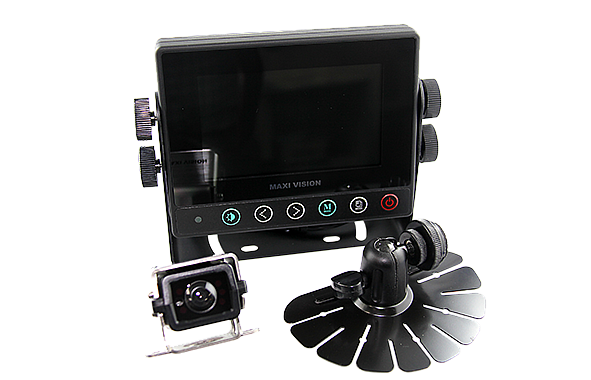

The AusProTec™ Maxi Vision® 5" Light Vehicle Camera Kit is robust in design and suited to light-duty applications.
Housed in an aluminium casing, the monitor and camera are designed to withstand harsh environments.
This multi voltage unit comes complete with a robust light duty fan mount, manual dim function and one colour camera with the option to upgrade to up to three cameras if required.
Widen your view towards safety today!

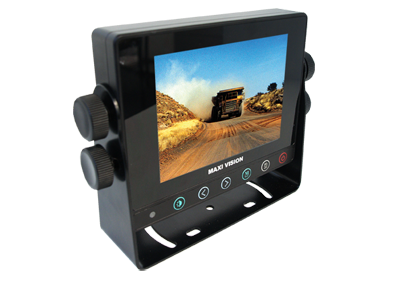

Монитор | |
Display screen | 5” TFT LCD panel with high resolution |
Resistance | Waterproof / dustproof to IP67 aluminium housing |
Operating temperature | -10C – 60C |
Напряжение | 12–24 В (в нормальном режиме) |
Current draw | 450mA |
Габаритные размеры | 152(W) x 119(H) x 27(D) mm |
Вес | 620g (monitor only) |
Loom | 2.5m (8.2ft) sealed connection lead |
Камера | |
Lens | F 2.0/30 IRE |
Minimum illumination | 0.5 Lux |
Resistance | Waterproof / dustproof to IP68 aluminium housing |
Operating temperature | -20°C to 65°C (-4°F to 149°F) |
Напряжение питания | 12 V DC |
Габаритные размеры | 36.6(W) x 27(H) x 37.7(D) mm (1.4" x 1" x 1.5") |
Вес | 80g (0.17lbs) |
Loom | 20m (65.6ft) loom |
