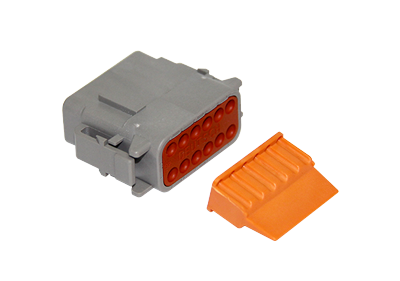

CONECTOR ENCHUFE 12 ENCHUFES COMPLETO CON TUERCA BLOQUEO DEUTSCH # DTM06-12S-W

APN: 5703

Deutsch Serie DTM

Deutsch DTM Series of transportation connectors feature a miniature contact with an enhanced design based on the world class, field-proven Deutsch “DT Series”.

The DTM is the connector to be used in harsh environments where reliable signal circuits are critical to operating performance. Typical applications include on or around the engine, the transmission and under the hood. In fact, everywhere data signals or critical electronic circuits go, the field proven Deutsch design of the DTM will provide reliable peak connector performance.

The low cost, size 20 contacts terminate AWG 16 to 22 gauge wire (0.5mm2 to 1.5mm2). Closed entry socket (female) contacts featuring spring action fingers are protected by a stainless steel hood. This allows for positive axial alignment while mating and prevents probe damage during testing. Thermoplastic housings offer a wide operating temperature range (-55°C to +125°C). Silicone rear wire and internal peripheral interface seals allow the DTM to withstand moisture and fluids.
