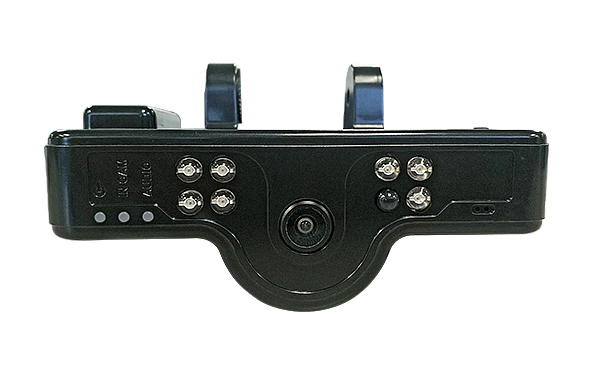

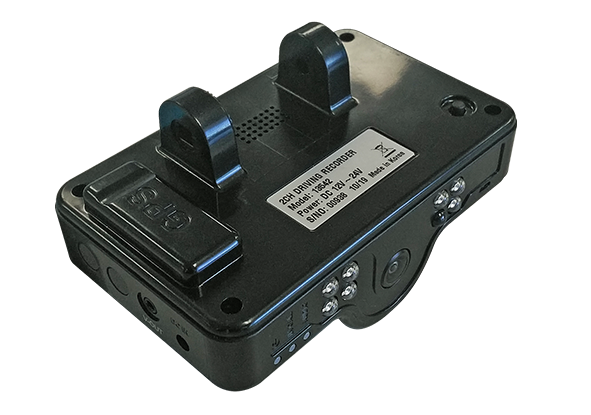

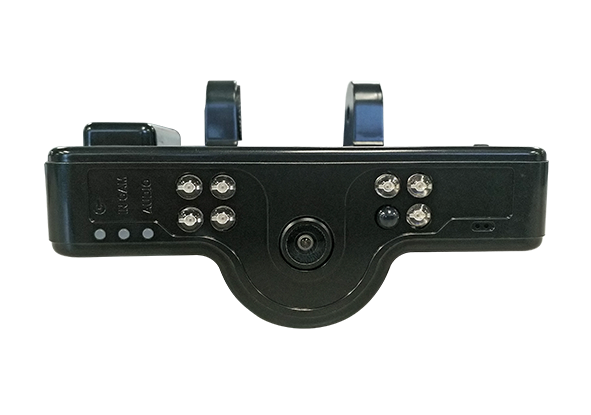

The AusProTec™ Maxi Vision Compact 2 Camera DVR Recorders have been designed to assist with in-cab and forward monitoring on mobile equipment.
These multi-voltage units come complete with inbuilt forward and reverse cameras, SD card, GPS and G-shock sensors.
Images can be easily downloaded and viewed utilising the supplied PC Viewer software. The software displays detail such as over speeding, impacts, driving route, speed, time, location and GPS tracking via Google Map interface (Terrain or Map display available).
The all-in-one, compact units are a perfect solution for driver/incident monitoring and training.
| 13542 / 15879 | |
| Камера | 13542 (64GB model), 15879 (128GB model) |
| Inside | 0.3M pixel CMOS (H : 104˚ / V : 72˚ / D : 125˚) |
| Outside | 1M pixel WDR CMOS (H : 92.6˚ / V : 67.1˚ / D : 123.5˚) |
| Recording | |
| Разрешение | Inside: VGA (640x480) / Outside: HD (1280x720) |
| Frame | 30fps x 2 (Parking: 1fps) |
| Режим | Ordinary / Event (Motion / G-sensor) |
| Time | Ordinary: Recording at intervals of 2 min. / Event: 10 seconds prior, 20 second |
| Сжатие | AVI (H.264) |
| Memory (mounted SD Card) | 13542 = 64GB, 15879 = 128GB |
| GPS | Internal (5 step) |
| G-sensor | внутренняя |
| Напряжение | DC 12 - 24V (with super cap) @max.32V |
| Current | 350mA @12VDC |
| Рабочая температура | -10°C to 60°C (14°F to 140°F) |
| Габариты | 105mm (W) x 22mm (H) x 67mm (D) (4.13" x 0.86" x 2.63") |
| Вес | 156g with bracket (0.34lbs) |
