Dual Frequency High Gain Antenna

Reduce handling and freight costs with the new two-piece Yagi
Dual Frequency High Gain Antenna

The Control Master® Yagi Dual Frequency High Gain Antenna is designed to receive and transmit both data and video signals for Control Master® Teleremote operation.

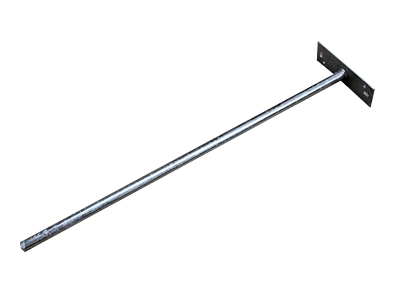

The Antenna is supplied with a mounting clamp and "N" type male fitting as standard.

The Yagi Dual Frequency High Gain Antenna (Part No. 12145) is a light weight, high gain dual frequency antenna. It comes in two pieces for ease of handling and lower freight costs.

Features
  • High gain dual frequency
  • Quality data and video signal
  • Sturdy Mounting clamp
  • Light weight
  • Corrosion resistant
  • Strong and Durable
  • Compact for lower freight costs
Specifications
Video gain11-13 dBm
Data gain11-13 dBm
Elements12 welded
Impedance50 ohm
DimensionsL-1500mm, W- 350mm
Connection“N” Type Male
Weight(alloy) 1.5 kg
Freight dimensionsL-850mm x W-350mm
Download
Reference: SBCM0613088
