Safety is a priority for successful operations, many of which include a number of commercial vehicles. A clear view to the front, rear and side of the vehicle, reduces the risk of an accident while in operation on site.
RCT’s NEW Maxi Vision Commercial Vehicle Camera Kits have been developed to assist in the safe operation of commercial vehicles across a range of industries such as Logistics, Transport, Rigid Truck, Refuse, Bus, Rail and Construction.

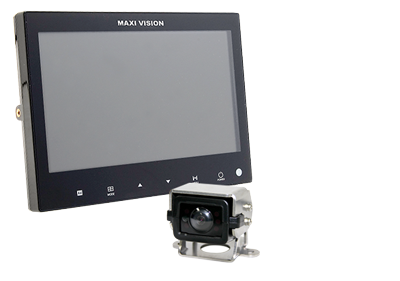

The kits include a high quality, durable and light weight camera with mounting and cables and a Maxi Vision Monitor. The system can be added to an existing vehicle simply and easily or retrofitted as required.

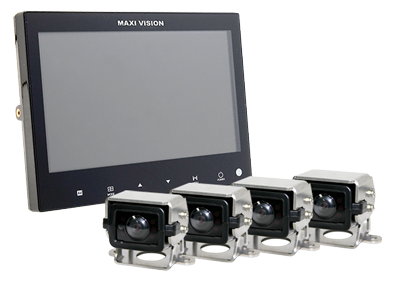

The Maxi Vision Monitor is a high quality, low cost, sturdy monitor ideally suited to application in a commercial vehicle. Up to 4 cameras can be accommodated by the specifically designed cable system with a reduced loom size and strip and tined flying lead for simple power input. Images from the cameras can be viewed by means of a split or full screen view on the monitor.
Significant savings are realised with no labour requirement for maintenance and repair, and “plug and play” fitment for new installations.
| Monitor | |
| Input System: | Auto (NTSC / PAL) |
| Input Video Signal: | Composite video (CVBS 75? 1Vp-p |
| Input Audio Signal: | Mono Power |
| Operating Voltage: | DC 12 – 24v (Min 10.5 – Max 30v) |
| Speaker: | Max 0.5W |
| OSD Language: | 5 languages |
| Operating Temperature: | -30°C - +70°C |
| Storage Temperature: | -40°C - +80°C |
| Dimensions: | 181(W) x 134(D) x 28(H) mm |
| Weight: | 580g (Monitor only) |
| Camera | |
| Pickup Device: | ¼” 250,000 pixels colour CCD (NTSC), ¼” 290,000 pixels colour |
| CCD (PAL) Lens: | 120(H) 90(V) 160(D) |
| Min Illumination: | 0.5lux, F2.0 |
| Power Consumption: | DV 12v, 160mA / 20 Watt |
| Operating Temperature: | -20°C - +65°C |
| Dimensions: | 36.6(W) x 27(H) x 37.7(D) mm |
| Weight: | 80g |
