In some situations, the safety demarcation zone or the size of the machine may obscure operator’s vision of the front or rear of the machine, preventing them from being able to get a clear view needed to perform simple operations.
When Line-of-Sight operation is available but vision is hindered or the area is unsafe, a portable Teleremote solution allows the operator to carry out the task from a safe distance, well beyond natural viewing sight.
The ControlMaster Portable Teleremote system is designed to perform Teleremote tasks where a full-vision system is not required.

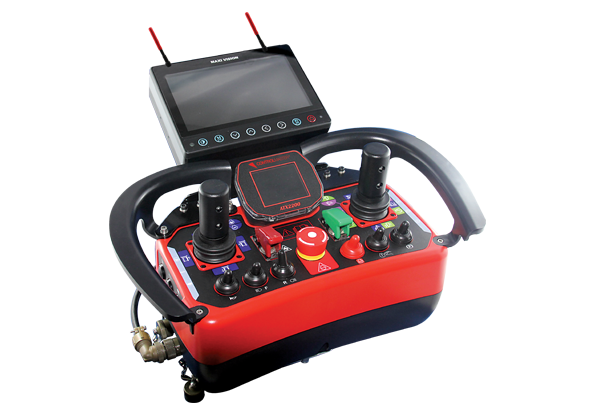

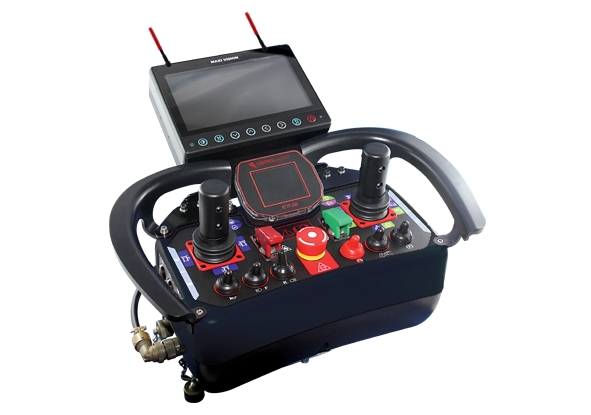

The Portable Teleremote system utilises two cameras on board the machine to provide the operator with vision of the machine’s movements. The camera images are relayed to a colour 7" LCD screen, which is positioned on the ATX remote set or a 10" LCD which is mounted in a separate, self-powered tough case that can be placed in the operator’s direct view.

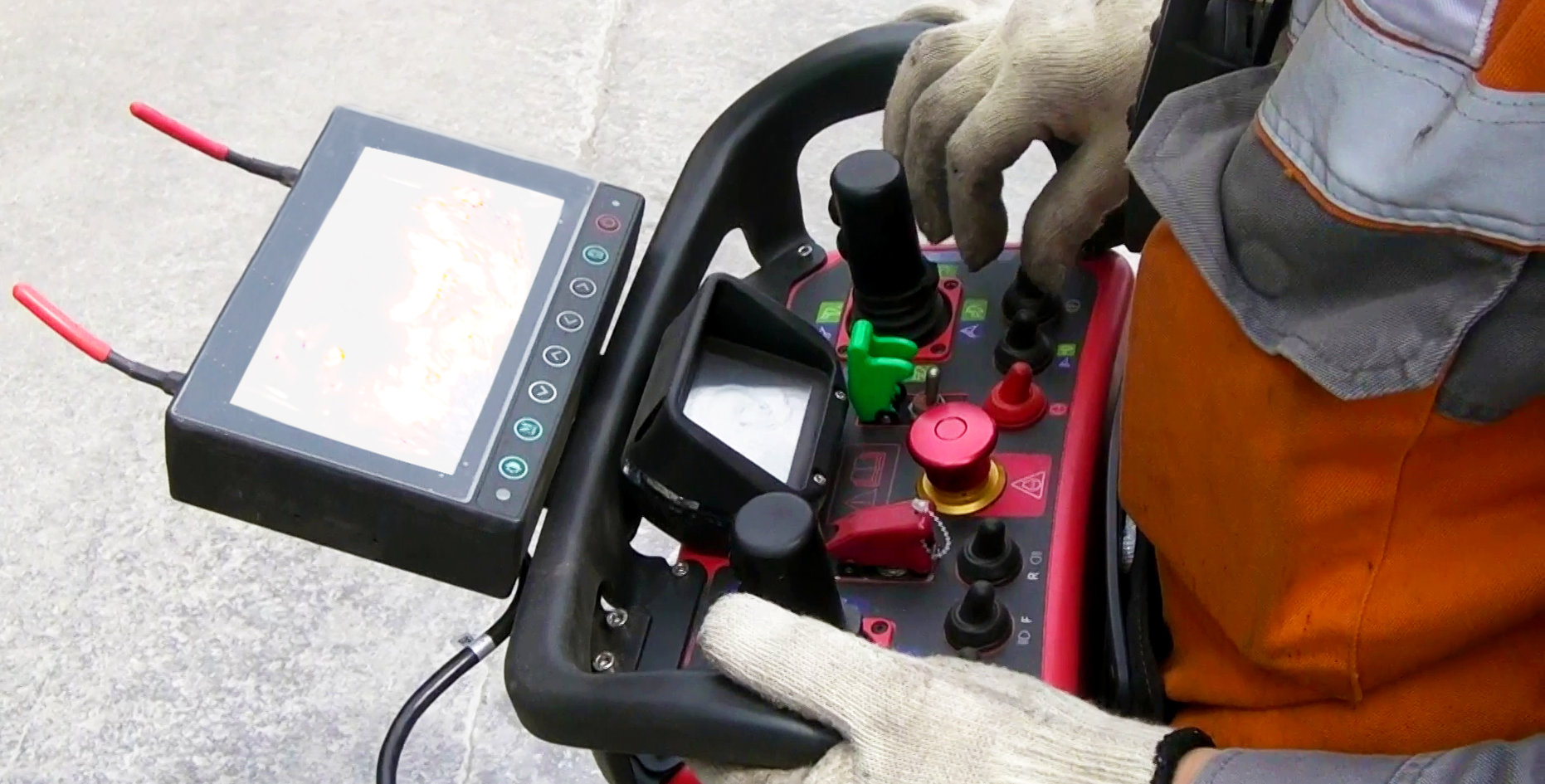

The operator is able to control the machine via the vision from the LCD unit. The camera views can be manually switched via the camera change button or automatically switched as the machine moves between forward and reverse. The Portable Teleremote system is easy to transport and is available with proportional outputs, single and dual channel systems are also available depending on requirements.
15150 PORTABLE VIDEO DISPLAY | |
Screen Size | 7-inch |
Display Start up Time | 30 s |
Video Latency | Up to 500 ms |
Resolution | WVGA 800(W) x 480(H) |
Aspect Ratio | 16:9 |
Brightness | 400 cd |
Contrast Ratio | 500:1 |
View Angle (L/R/U/D) | 70/70/50/70 |
Power Requirement | Regulated 12 Vdc @ 8 Watt |
Video Signal | Composite video (CVBS) 75Ω 1 V p-p |
Operating Temperature | −30 °C to +50 °C |
Dimension - Screen Only | Width: 181mm Height: 134mm Depth: 67mm |
Housing Material | Aluminium |
Housing Colour | Black |
Weight (including mount, excluding ATX transmitter) | 1.4 kg |
Degree of Protection | IP65 |
ATX Battery Endurance with Attached Video Receiver (RX) | 5 h approximately |
SSID | Portable Video Assist xxx |
Radio Technology | 802.11 |
Radio Frequency | 2.4 GHz |
Radio Channels | Default channel set to 1, 6, 11 |
Radio Channel Bandwidth | 20 MHz |
Antennae | 2 x 3 dBi 2.4 GHz SMA male omnidirectional antenna |
Mount Material | Aluminium |
Mount Colour | Black |

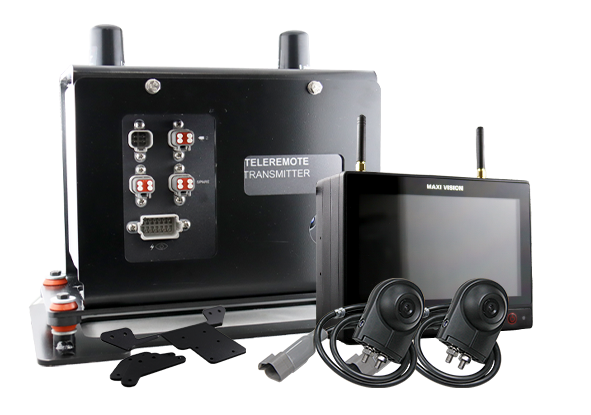

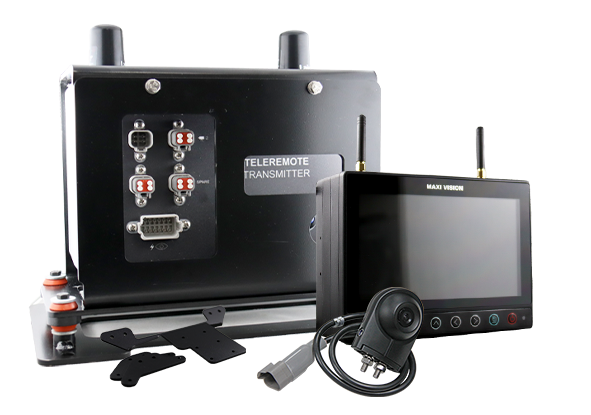

15149 PORTABLE VIDEO TRANSMITTER | |
Mating Connectors | 1 x DT06-12S / 4x DT06-4S |
Startup Time | 30 seconds |
Camera Inputs | 4 x Cameras Max. (2x Included) |
Dimension - excluding mounting screws | Width: 220mm Height: 178mm Depth: 92mm |
Housing Material | Aluminium |
Housing Colour | Grey |
Degree of Protection | IP67 |
Input Voltage | 9 to 32 Vdc |
Weight | 10 kg |
Mount Material | Mild Steel |
Mount Colour | Black |
RADIO | |
Video Input System | PAL |
SSID | Portable Video Assist xxx |
Video Input | 75 Ω 1 Vpp |
Radio Power Output | Region Specific |
Radio Frequency | 2.4 GHz |
Radio Technology | 802.11 |
Radio Channels | Default channel set to 1, 6, 11 |
Voltage Standing Wave Ratio (VSWR) | < 2.1 |
Nominal Gain | 3 dB-M.E.G. |
Polarization | Vertical and Horizontal |
Pattern | Omnidirectional |
Half-Power Beamwidth (Elevation° x Azimuth°) | 130° x 360° |
Antenna Housing Material | ABS |
Tested Line-of-Sight Range | 100 m |
14220 CAMERA | |
Pickup Device | Sony ISX017 WDR Sensor colour CMOS |
Angles of Vision | 82 (H) / 61 (V) / 140 (D) |
Total Pixels | 1,297 (H) x 977 (V) / 1.27 M pixels |
Min. Illumination | 0.1 Lux (F = 20) |
Input Voltage | 12 to 48 Vdc |
Operating Temperature | −20 °C to 60 °C |
Storage Temperature | −30 °C to 70 °C |
Degree of Protection | IP69K |
Dimensions - with bracket | 57.9 (Dia) x 71.1 (H) mm |
Weight - with bracket | 155g |
